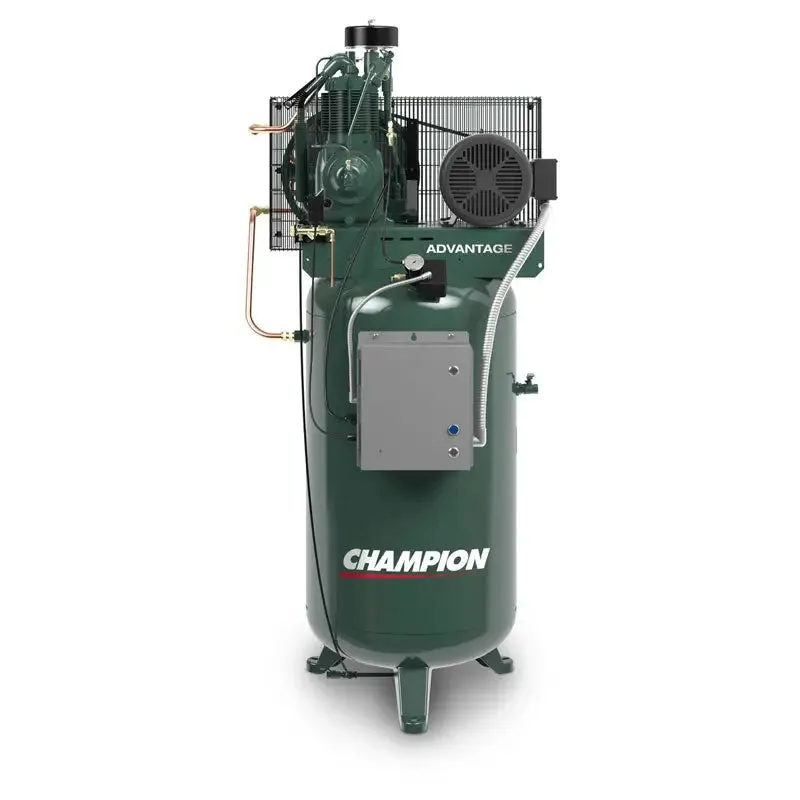

Name: Champion Advantage 7.5HP Vert Air Compressor (80 Gal)
SKU: 353119

Advantage VR7F-8 splash lubricated 7.5HP, 80 Gal, verticle tank, with R15 pump model air compressor

These Advantage units come fully packaged with pre-installed accessories. They are highlighted by our quick-ship program so the compressor arrives quickly, ready to install and operate. Each new assembled unit has a 3-year warranty on the compressor pump.

Features:

Mounted Nema 1 Control Panel
Low Oil Stop Control
Electric - Auto Tank Drain
Air Cooled Aftercooler / Select Models
Dual Control / 15 & 25 HP Models Only
Vibration Isolators
R-Series, two-stage pump
Loadless Starting
Intake Filter
Start/stop pressure switch control
1800 RPM Motor
ASME Coded Receiver
Enclosed Belt Guard

VR7F-8-ADVA-S168
Tank: Vert
Tank Size: Gallons / liters: 80 / 303
HP: 7.5 HP
Phase: 1
Volts: 208
Model Number: VR7F-8
Control Panel, Level 1: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: -
California Compliant: Yes
Stock Variant / Ordering : ADVA-S168
Pump Model: R15
Pump RPM: 949
ACFM 175 PSIG / M3/HR 10 BAR: 22.3 / 37.9
Est. Ship Weight: Lbs / kg: 630 / 286

VR7F-8-ADVA-S13
Tank: Vert
Tank Size: Gallons / liters: 80 / 303
HP: 7.5 HP
Phase: 1
Volts: 230
Model Number: VR7F-8
Control Panel, Level 2: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: -
California Compliant: Yes
Stock Variant /Ordering: ADVA-S13
Pump Model: R15
Pump RPM: 949
ACFM 175 PSIG / M3/HR 10 BAR: 22.3 / 37.9
Est. Ship Weight: Lbs / kg: 630 / 286

VR7F-8-ADVA-S17
Tank: Vert
Tank Size: Gallons / liters: 80 / 303
HP: 7.5 HP
Phase: 3
Volts: 208
Model Number: VR7F-8
Control Panel, Level 3: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: -
California Compliant: Yes
Stock Variant /Ordering: ADVA-S17
Pump Model: R15
Pump RPM: 949
ACFM 175 PSIG / M3/HR 10 BAR: 22.3 / 37.9
Est. Ship Weight: Lbs / kg: 630 / 286

VR7F-8-ADVA-S15
Tank: Vert
Tank Size: Gallons / liters: 80 / 303
HP: 7.5 HP
Phase: 3
Volts: 230
Model Number: VR7F-8
Control Panel, Level 4: Std
Panel Mounting: Std
Low Oil Stop Control: Std
Electric Tank Drain: Std
Vibration Isolators: Std
Air Cooled Aftercooler: Std
Dual Control: -
California Compliant: Yes
Stock Variant /Ordering: ADVA-S15
Pump Model: R15
Pump RPM: 949
ACFM 175 PSIG / M3/HR 10 BAR: 22.3 / 37.9
Est. Ship Weight: Lbs / kg: 630 / 286
